- Features
- 2x 4 Ports input High-Speed FAKRA Mini (HSFM) connectors
- 2x Quad GMSL Deserializer by MAXIM Integrated (MAX9286)
- Support for 2*4 ON Semiconductor image sensors modules (AR0231AT+AP0202+MAX96705)
- 2*FD CAN ports output
- UART to USB debug connector
- ETH port ( converting from USB2.0 of the HS connector to ETH bridge )
- Two CSI-2 connector interface:two 4Lanes CSI-2 connector from MAX9286 output

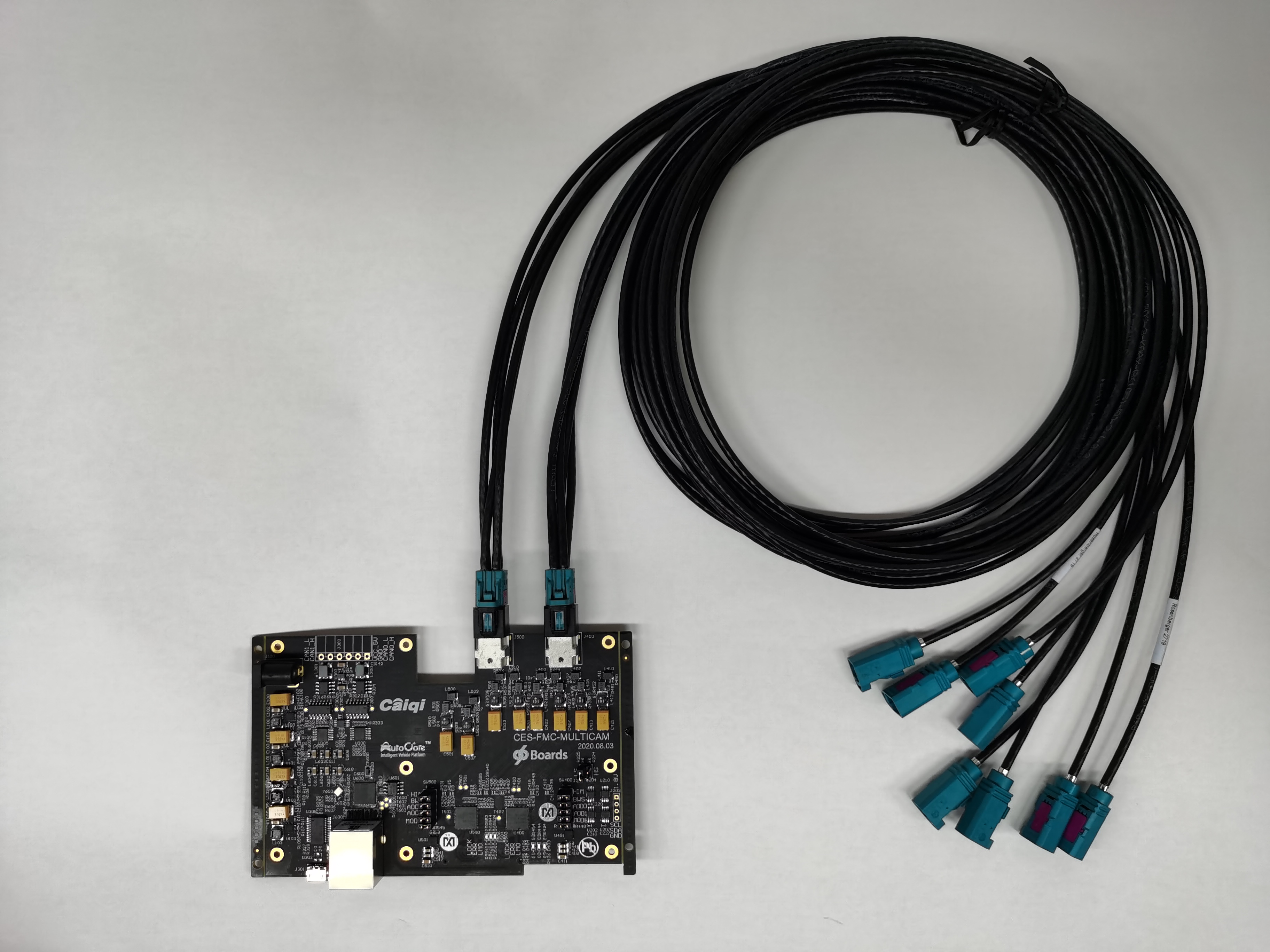

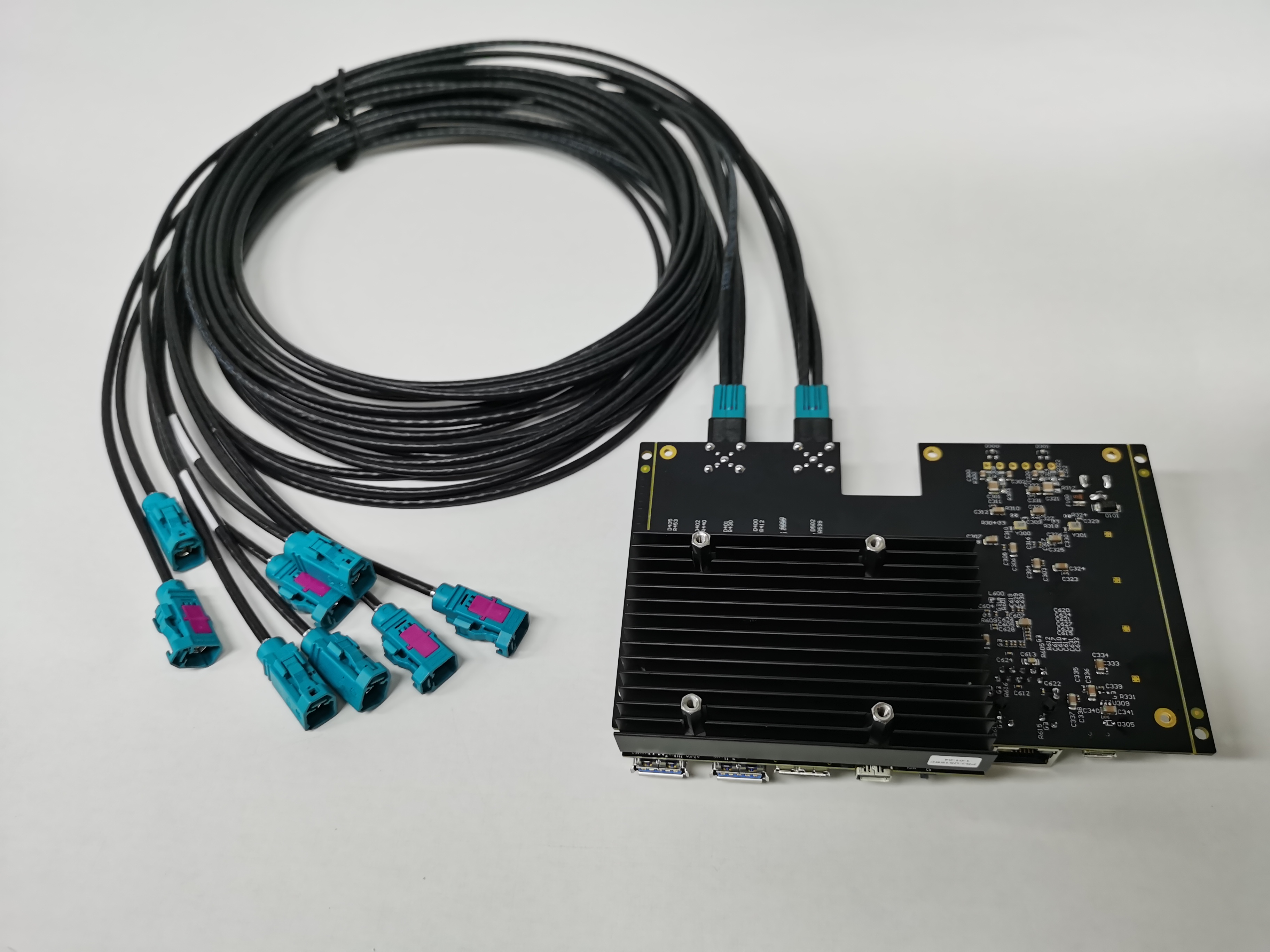

The AGV Vision Perception kits enable the 360 degree Surround View and Front smart camera functions for ADAS applications, which consists of 96Boards CE based Ultr96, 96Boards Vision Mezzanine Boards and up to 6pcs Automotive Grade GMSL Camera modules and cables. The total solution hardware design and source code are open and can be accessed from the 96Boards websites.
Additional Information
- Camera Interfaces: 2x Quad GMSL Deserializer by MAXIM Integrated (MAX9286)
- Support for 2*4 ON Semiconductor image sensors modules (AR0231AT+AP0202+MAX96705)
- Expansion Interfaces: Two UART, two SPI, one I2C, one PCM, GPIO, CAN, ETH, CSI-2.
- Datasheet and User Manual Download
